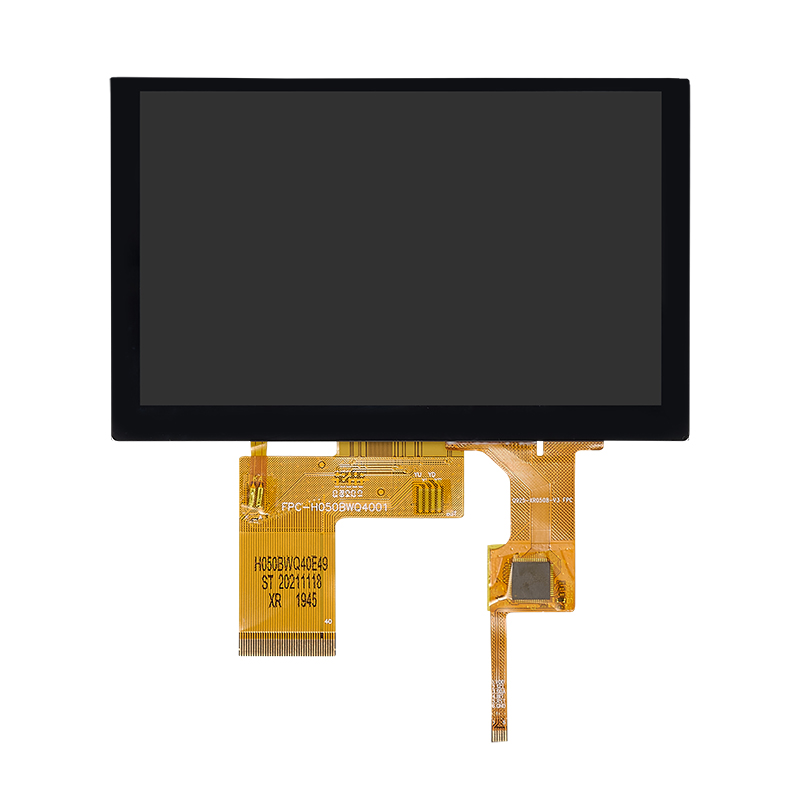

型號：H050BWQ40E3513-CT
尺寸：5 inch
分辨率： 480(RGB) × 272
接口方式：40pin 24bit RGB
外觀尺寸（顯示區域）：120.7*75.8*3（110.88 x62.83）
亮度：350 nits
按需求定制
質量保障
品牌認證
產品參數
產品圖紙
一、產品參數：
Size | 5 inch |
Resolution | 480(horizontal)*272(Vertical) |
Interface | 24bit-RGB |
Connect type | Connector |
Color Depth | 16.7M |
Technology type | a-Si |
Pixel pitch (mm) | 0.231 x 0.231 |
Pixel Configuration | R.G.B. Vertical Stripe |
Display Mode | Normally White |
- | |
Viewing Direction | 12 O’clock |
GSI Direction | 6 O’clock |
LCM (W x H x D) (mm) | 120.7*75.8*3 |
Active Area(mm) | 110.88 x62.83 |
With /Without TSP | Without |
Weight (g) | TBD |
LED Numbers | 12 LEDs |
二、產品接口定義：
No. | Symbol | Description |
1 | LEDK | Backlight LED Cathode |
2 | LEDA | Backlight LED Anode. |
3 | GND | Ground |
4 | VDD | Power supply |
5~12 | R0~R7 | Data bus |
13~20 | G0~G7 | Data bus |
21~28 | B0~B7 | Data bus |
29 | DGND | Ground |
30 | DCLK | Dot clock signal input. Latching input data at its rising edge. |
31 |
DISP | Standby mode. Normally pulled high. DISP=“1”: Normally operation (Default) DISP=“0”: Timing controller, source driver will turn off ,all output are High-Z. |
32 | HSYNC | Horizontal sync input. Negative polarity. |
33 | VSYNC | Vertical sync input. Negative polarity.. |
34 | DE | Data enable input. Active high to enable the input data bus under “DE Mode.” |
35 | NC | No connected |
36 | GND | Ground |
37 | XR | The right side signal of TP |
38 | YD | The down side signal of TP |
39 | XL | The left side signal of TP |
40 | YU | The up side signal of TP |

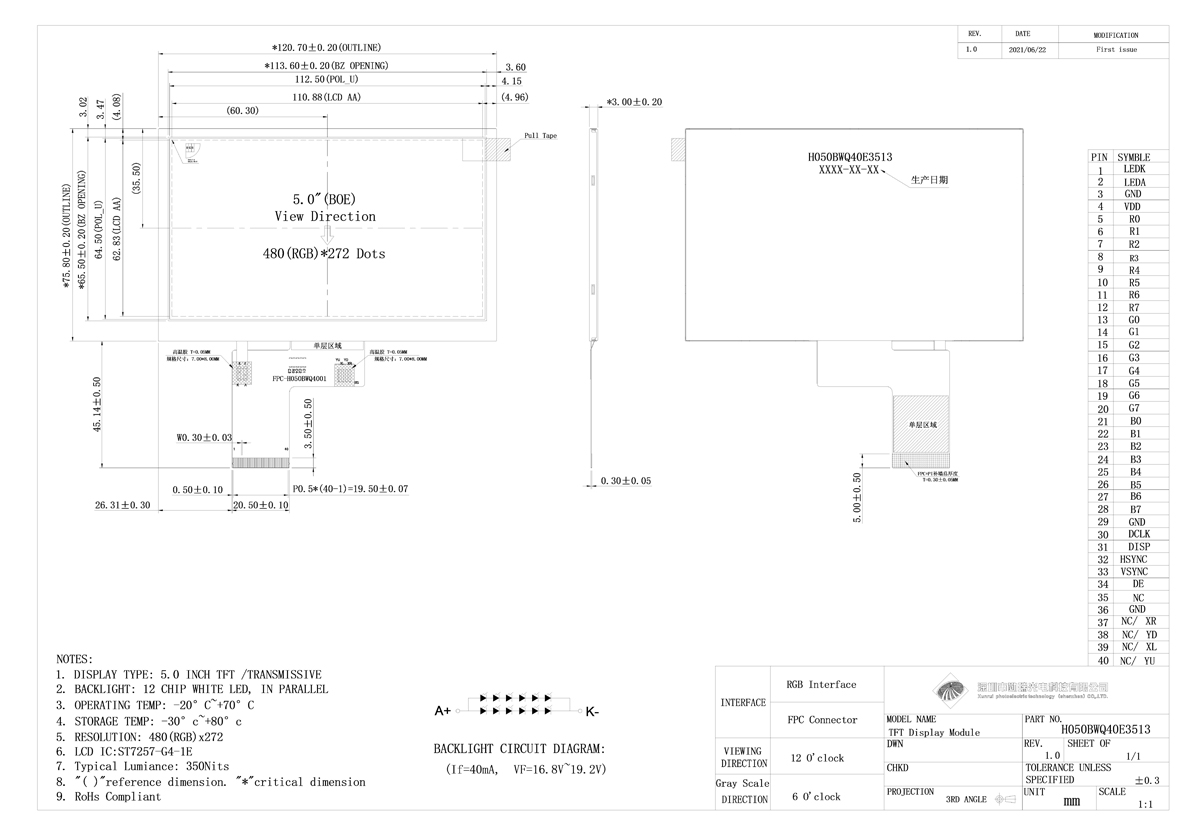

三、產品尺寸圖紙
